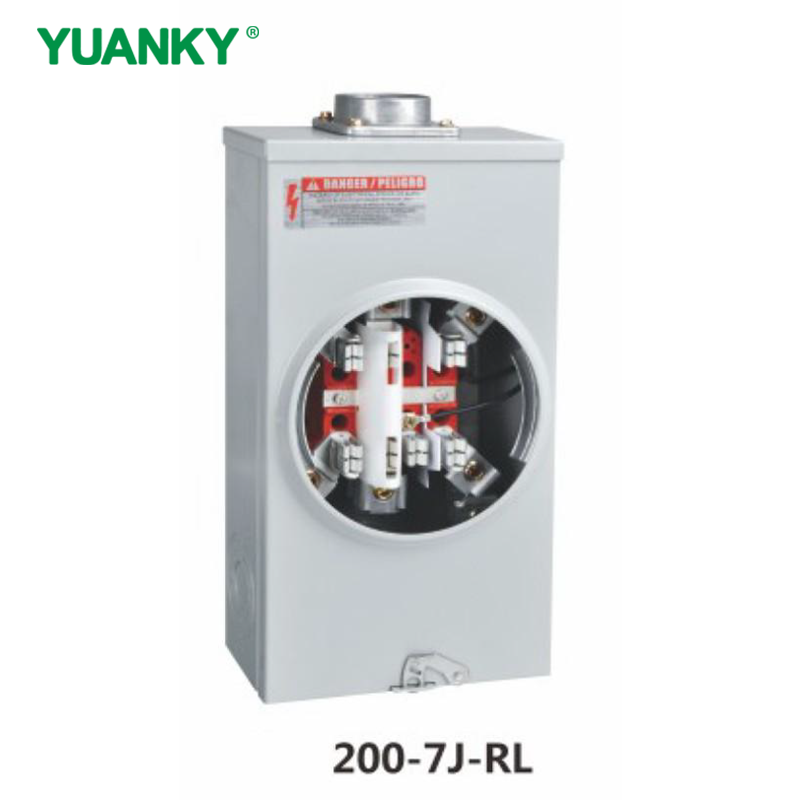

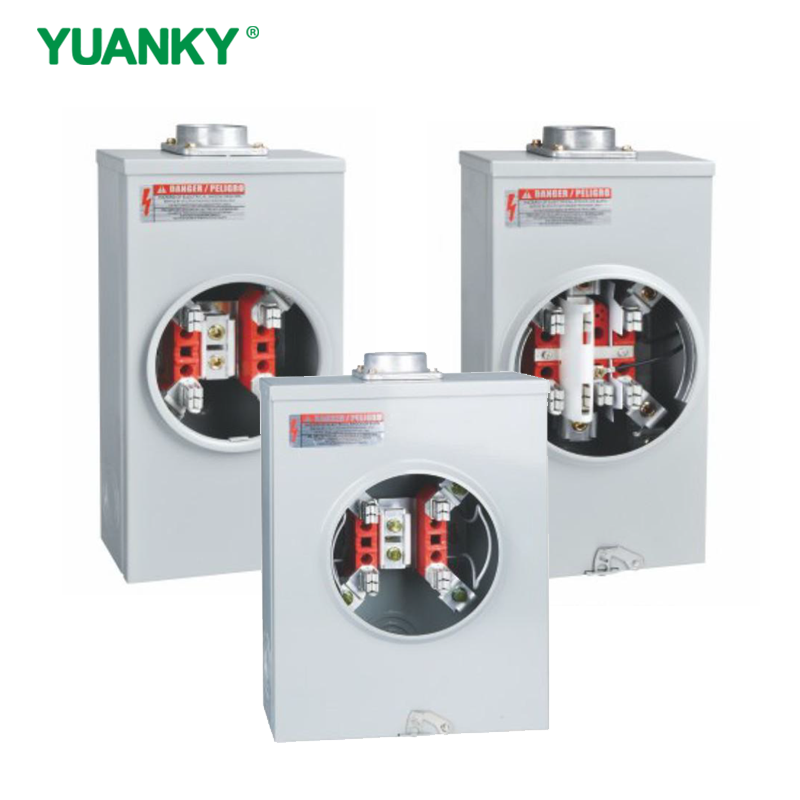

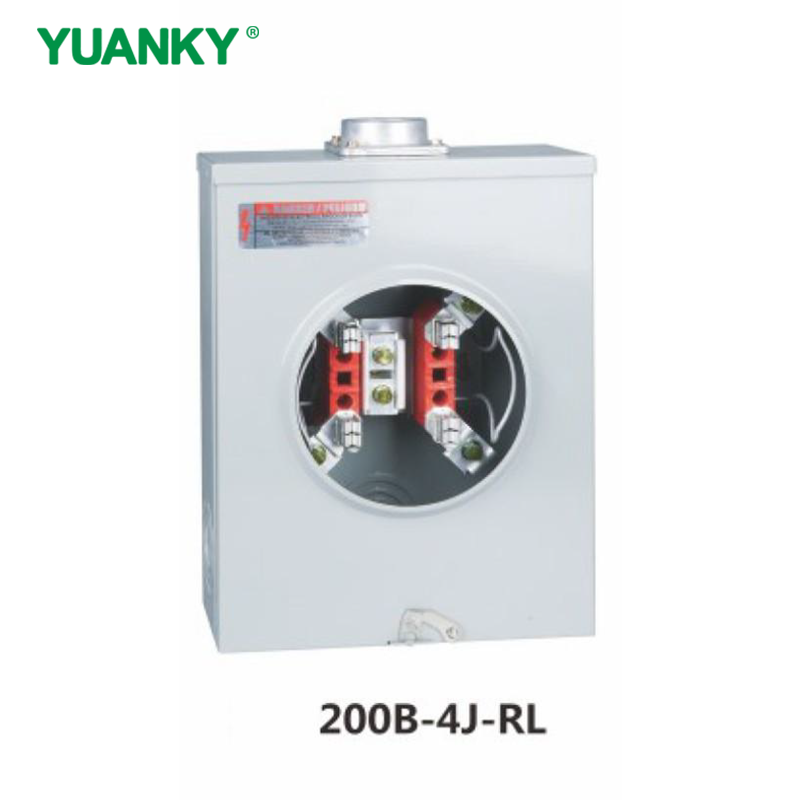

YUANKY 200A 600VAC Single Phase 200S Series Meter Socket Mounting Equipment

Meter Mounting Equipment
Quality is the kernel concept of enterprise, our company put such concept into each procedure in enterprise administration, execute it as promised.
Features:
200Amps,600V AC.
Connectors Line and load size #6-350 Cu-Al.
Heavy duty tinned copper jaw with reinforced clip.
C/W center neutral bar.
NEMA 3R type construction 1.2mm thickness (#18 gauge) or 1.5mm thickness (#16 gauge) galvanized steel sheet, electrostatically applied epoxy baked gray powder finished.
Ample gutter space for easy wiring.
Convenient knockouts in the side back and bottom.
Lay in type terminal with pressure plates for easy connections.
The fixed hub size 1/2" to 2-1/2" for option.
Availability:
  • 200S Series Meter Socket

  • YUANKY

  • America, Europe, Britain, Australia, Southeast Asia, Philippines, I, Africa

item value
External Size 396x203x108mm
Material Cu-Al
IP level NEMA 3R
Type Switch Box
Place of Origin China

Zhejiang

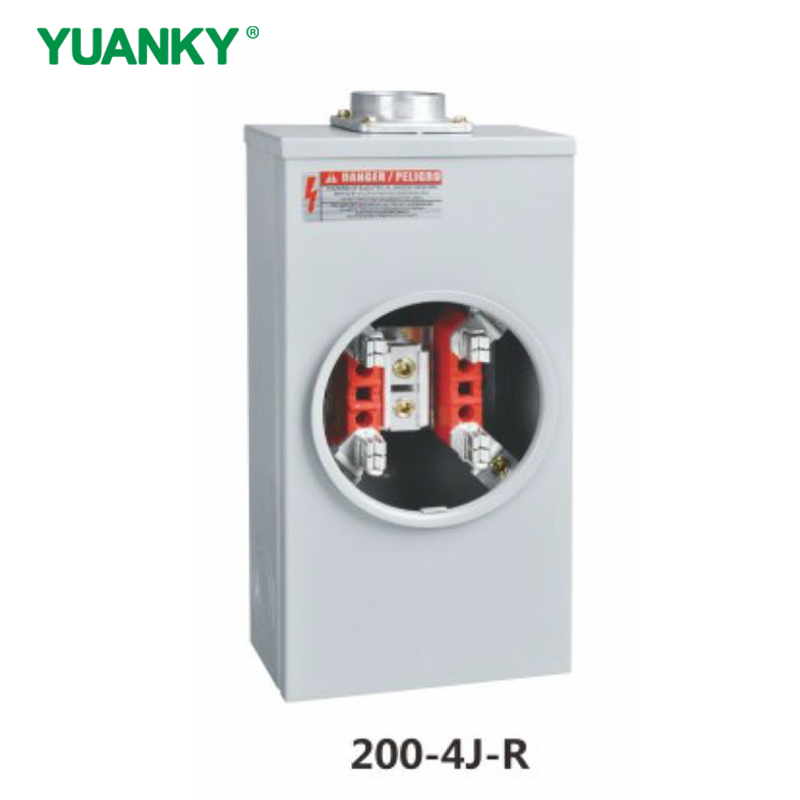

Model Number 200-4J-R
Brand Name YUANKY
Surface Treatment Die cast Aluminum
Product Name Meter Socket
Color Grey
