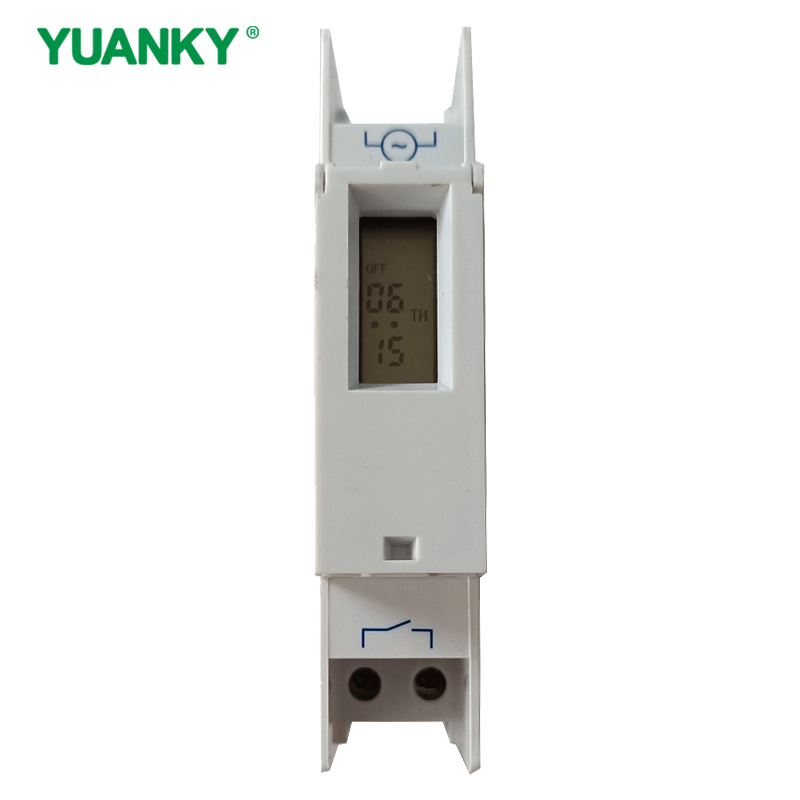

YUANKY Timer HWC808 Per Day Cycle AC 220V 16(10)A LCD Time Relay Switch



Availability:
Inquire Add to Basket

  • America

Classification Weekly programmable Editable timer
Model HWC808
Dimensions 86*18*66
Full timing range Per week or per day cycle
Rated voltage AC 220V 50/60Hz 85%-110%
Contact capacity 16(10A), 250VAC
Contact form 1Z1
Accuracy ≤2S/DAY
Display LCD
Mounting form Din rail
Electrical life 100000
Mechanical life 10000000
Ambient temperature -10℃~+50℃
Programmable ON/OFF per day or per week
Storage battery 3 years
Consumed power 3VA
    • Timer time relay per day cycle time switch time switch
