YUANKY HWSG-xxD8/RLN1 (DN15-DN20) SINGLE JET JET TYPE WATER METER

Product introduction

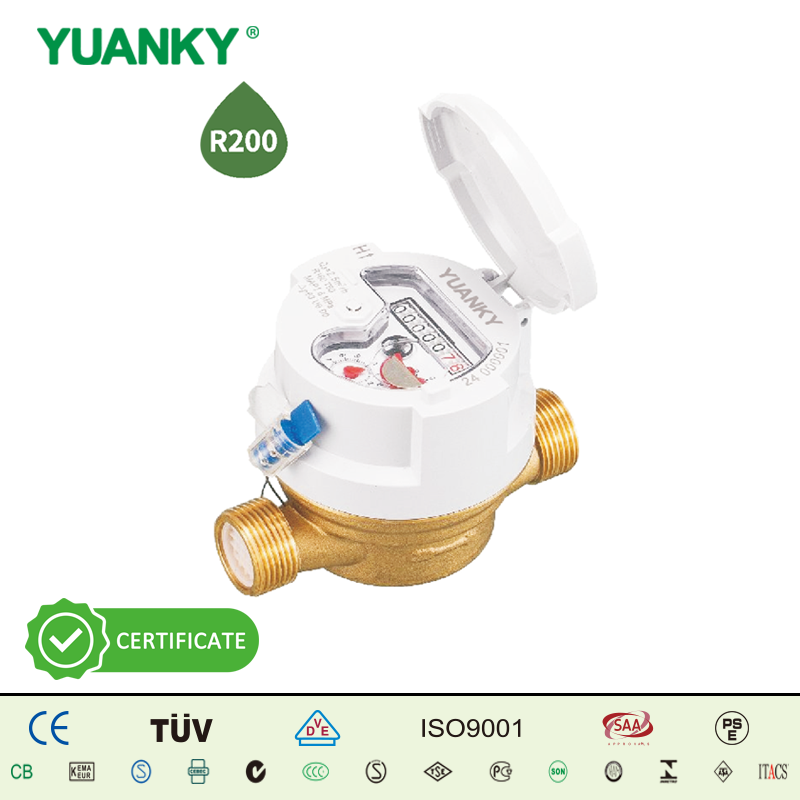

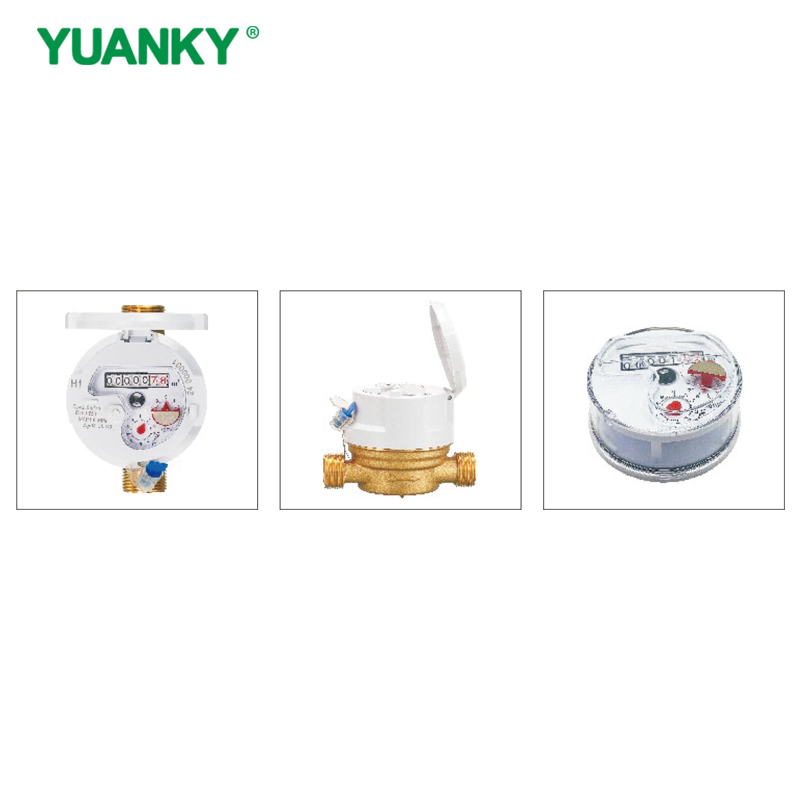

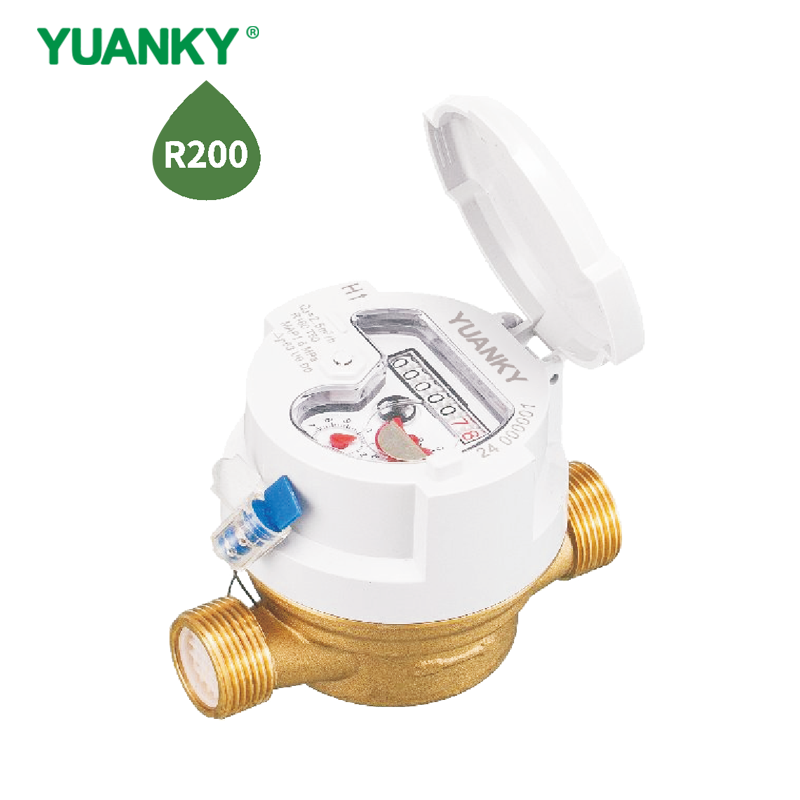

This is YUANKY single‑jet water meter of model HWSG‑xxD8/RLN1, available in DN15 and DN20 sizes. Constructed with brass body and dry register structure, it is pre‑equipped with inductive sensor, adopts magnetic‑drive mechanism with anti‑magnetic protection and supports 360° rotating dial. Designed for residential water metering, this meter can be fitted with optional pulse output and smart communication modules to realize remote reading for cold and hot water applications.

Availability:



Inquire Add to Basket

Model:
HWSG-xxD8/RLN1 (DN15-DN20)
Brand:
YUANKY
Intercontinental Product:
America, Europe, Britain, Australia, Southeast Asia, Philippines, I, Africa, French, Arabic, German

Product Features

YUANKY HWSG-xxD8/RLN1 (DN15-DN20) SINGLE JET JET TYPE WATER METER is built with a brass body and adopts a dry register to keep clean reading for long time. It is pre‑equipped with inductive component and features magnetic drive with anti‑magnetic protection, as well as a 360° rotating dial for flexible reading. Several length and connection options, non‑return valve and pulse output of 1L/Pulse or 10L/Pulse can be provided upon request. Suitable for cold water up to 30℃ and hot water up to 90℃ under working pressure ≤1.6MPa (16bar), the meter delivers reliable metering performance with maximum permissible error of ±5% in lower flow zone and ±2% in upper flow zone.

Technical parameters

Project	parameter
Diameter size	DN15，DN20
Size(inch)	1/2"，3/4"
Accuracy grade	R200
MAX indicating range	99999 m³
Resolution	0.00005 or 0.00002 m³
Water temperature class	T30 and T50
Water pressure class	MAP10 or MAP16
Pressure‑loss class	△p63
Orientation limitation	U0D0
Connection Thread	G3/4"B，G1"B
Dimension L(mm)	110/115，130
Dimension W(mm)	80，80
Dimension H(mm)	80.5，83
