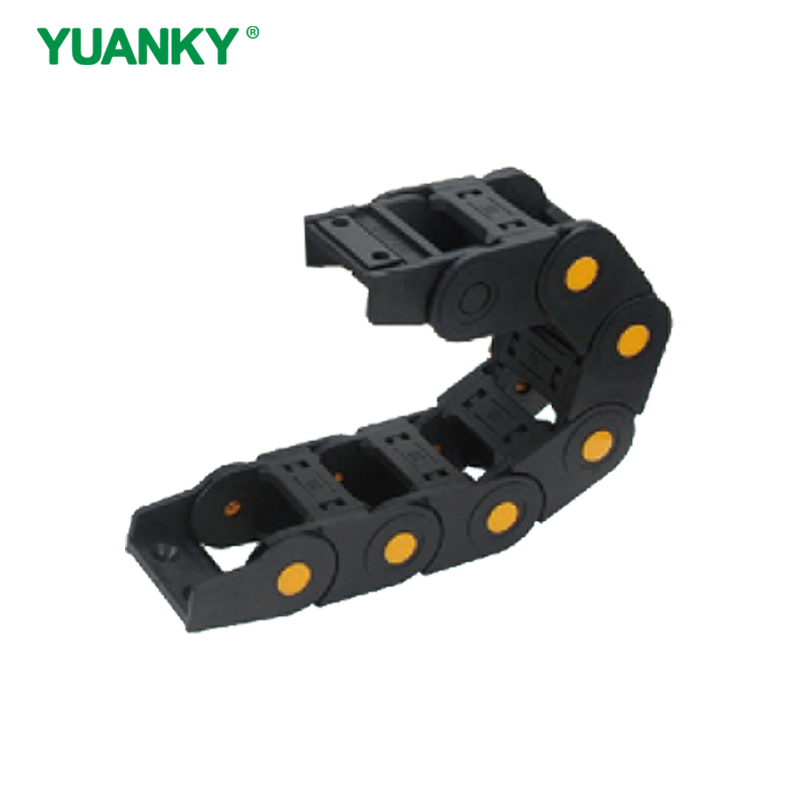

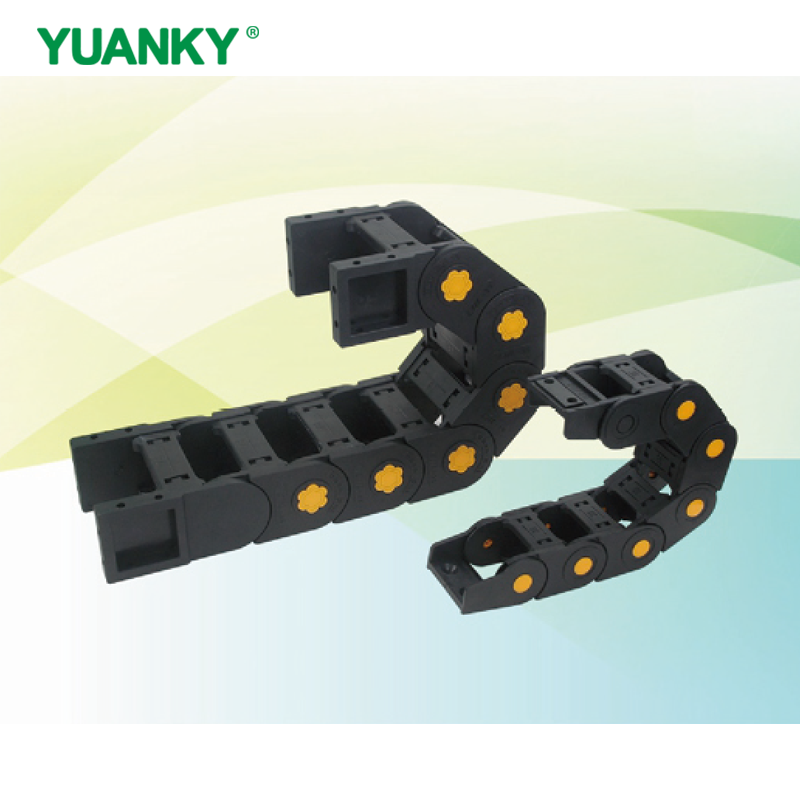

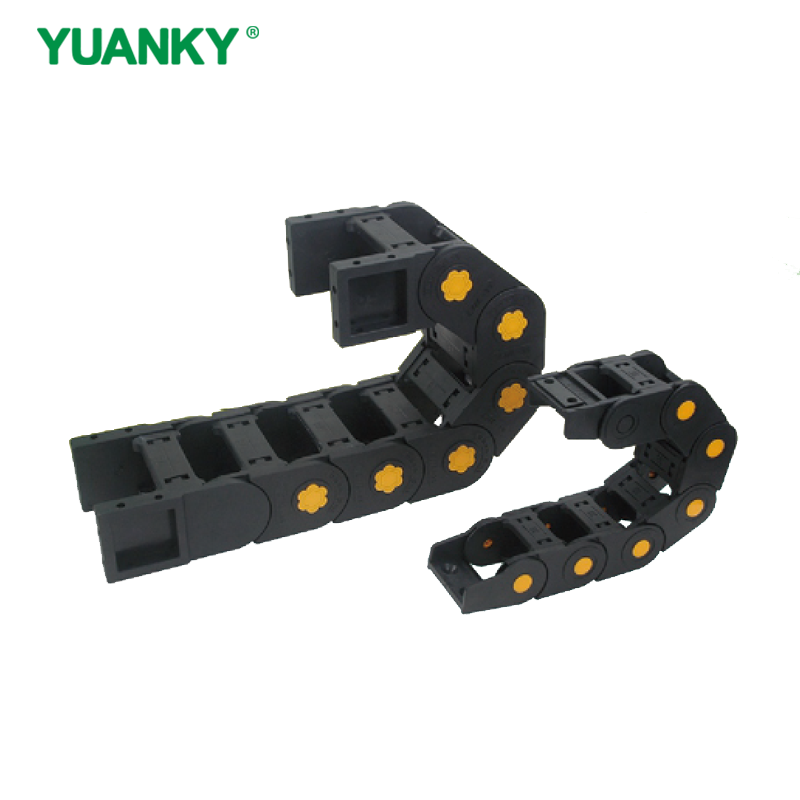

YUANKY Hot Selling Drag Chain Engineering Polyamide

Product material: Engineering polyamide is used in manufactureing. It is impact resistant with high strength and light in weight. It is cuitable for auick
Application: Used in such fields as chemical industry, machinery, electric power and transportation


Unit: Price per meter
Packaging: Carton packaging
Material: Reinforced nylon PA6 Drainage hose dimensions: Inner diameter height * Inner diameter width (mm)
Turning radius total height (H): 2 * bending radius + outer height (H)


Inner width selection: Determine the inner width size based on the number of cables (the width of the cables must not exceed 80% of the inner width)
Inner height selection: Determine the inner height size based on the actual diameter of the cables (the actual cable diameter must not exceed 90% of the inner height)
Bending radius selection: Based on the installation space height Calculation of the total height after the drag chain is bent (i.e., the required installation space height): Total height = 2 x Radius + The selected drag chain's outer height
