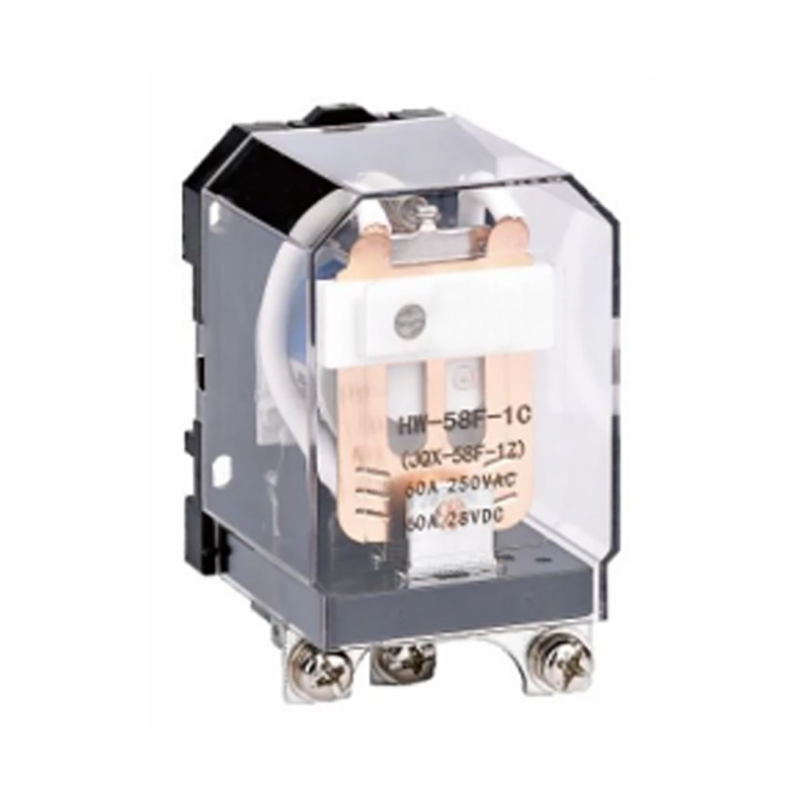

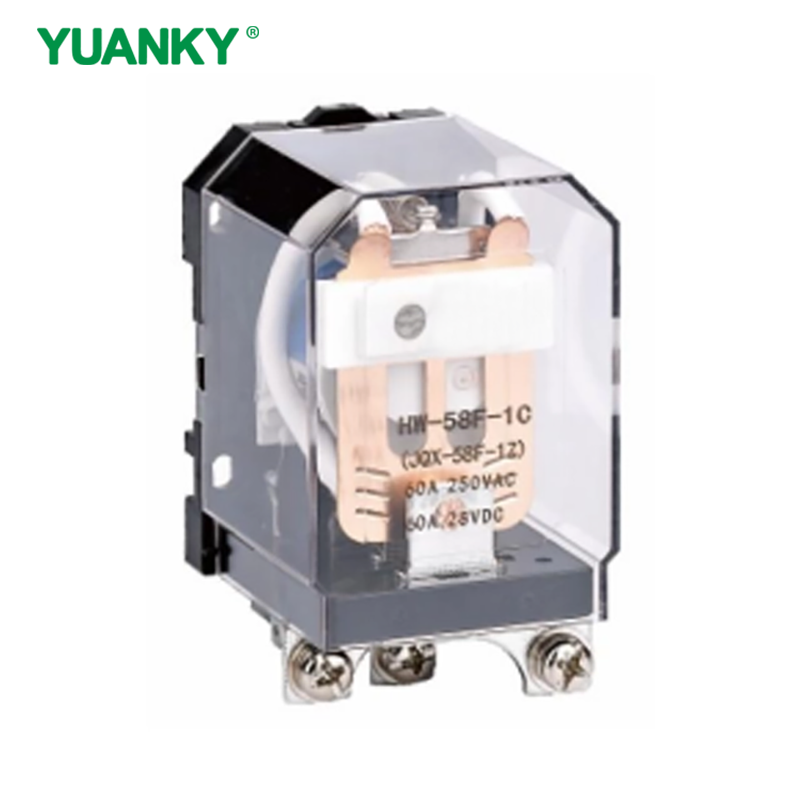

HW-58F DIN-Rail Power Relay

Strong structure, strong impact resistance, strong vibration resistance and long service life
60A Load switching current:60A
retaining bolt installation
it can provide 1 set of contact conversion

Availability:
Inquire Add to Basket

  • America

Type and meaning

q2

1、Enterprise Code: Haohui Electronics

2、Serial Number

3、Number of contact groups: one

4、H-normally open contact Contact Form: z-conversion type D-normally closed contact

5、Mounted type: retaining bolt installation

6、Auxiliary function :D/CRInhibitory protection

7、Coil Voltage:DCis for direct voltage AC is for alternating voltage

Product performance

Contact resistance ≤100mΩ
Electrical life ≥5×104
Mechanical life ≥1×10⁶
Coil voltage DC:6-220V AC;6-380V
Suction time ≤25ms;
Release time ≤15ms
Between the same pole contacts 1000VAC/1min(Leakage current 1mA)
Between polar contacts /
Between contact and coi 2500VAC/1min(Leakage current 1mA
Insulation resistance ≥200MΩ(500VDC
Ambient temperature -25℃~+55℃
Ambient humidity 35%～80%RH
Atmospheric pressure 86～106KPa.
Impact resistance 10G(Sine half wave pulse:11ms)
Vibration resistance 10~55Hz Double amplitude:1.5mm
dimension 68×47 X60mm
weigh around 170g

External dimensions (mm)

q3
