130Watt Maximum power

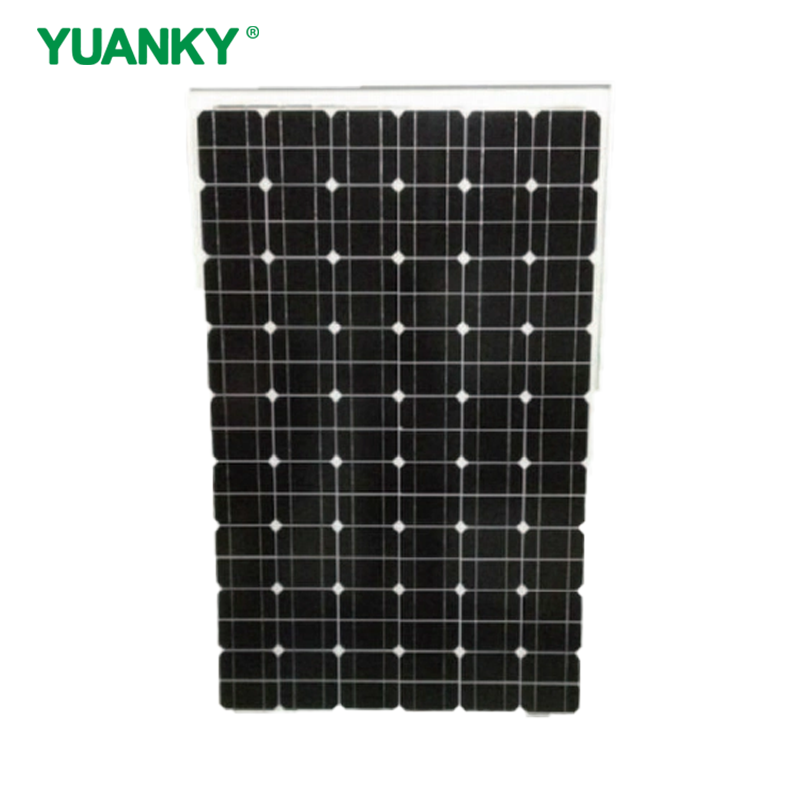

Mono-crystalline solar panel
Poly-crystalline solar panel
HWS P-60 HWSP-1 00
HWS P-70 HWSP-11 0
HWS P-80 HWSP-120
HWSP-90 HWSP-130
Quality and safety
●25-year power output warranty with China Pacific Property Insurance Co.,Ltd
●Rigorous quality control meeting the highest international standards
●ISO 9001: 2008(Quality Management System)certified factories manufacturing world-class products
Recommended Applications
● On-grid utility systems
●On-grid commercial systems
●Off-grid ground mounted systems
Electrical Characteristics
| Characteristics | HWSP-60 | HWSP-70 | HWSP-80 | HWSP-90 | HWSP-00 | HWSP-110 | HWSP-120 | HWSP-130 |
| Open-Circuit Voltage(Voc) | 21.8 | 21.4 | 21.8 | 21.8 | 22 | 21.4 | 21.6 | 21.6 |
| Optimum Operating Voltage(Vmp | 17.8 | 17.2 | 17.6 | 17.8 | 18 | 17.2 | 17.4 | 17.6 |
| Short-Circuit Current(Isc | 3.85 | 4.56 | 5.23 | 5.6 | 6.12 | 6.86 | 7.42 | 7.83 |
| Optimum Operating Current(lmp | 3.38 | 4.07 | 4.55 | 5.06 | 5.56 | 6.4 | 6.9 | 7.39 |
| Maximum power at STC(Pmax) | 60W | 70W | 80W | 90W | 100W | 110W | 120W | 130W |
| Operating Temperature | -40℃to+85℃ |
| Maximum System Voltage | 1000VDC | 1000VDC | 1000VDC | 1000VDC | 1000VDC | 1000VDC | 1000VDC | 1000VDC |
| Series Fuse Ratinc | 11A | 11A | 11A | 15A | 15A | 15A | 15A | 15A |
| Power Tolerance | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% |
| NO.of Cells | 72 | 36 | 108 |
| Dimensions(MM) | 835x540x28 | 910x510x28 | 1000x510x28 | 1100x510x28 | 1210x540x28 | 1250×808x35 | 250x808x35 | 1250x808x35 |
| Weight(KG) | 5.5 | 8.2 | 11.8 |
| Front Glass | 3.2mm tempered glass |
| Frame | Anodised aluminium alloy |
| lunction Box | PV-Rh701 | PV-RH701 |
Temperature Coefficents
| Nominal Operating Cell Temperature(NOCT) | 45±2℃ |
| Temperature Coefficient of Pmax | -0.48%/℃ |
| Temperature Coefficient of Voc | -0.34%/℃ |
| Temperature Coefficient of Isc | -0.017%/℃ |
