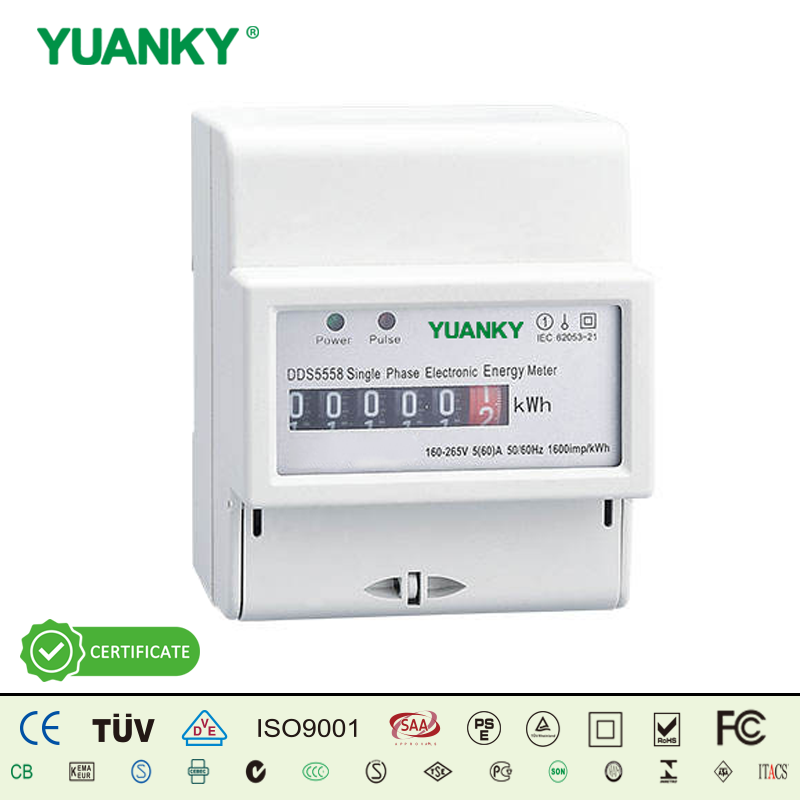

Single Phase Electronic Din-rail Active Energy Meter DDS5558-4P

Model DDS5558 single phase electronic DIN rail active energy meter is a kind of new style single phase two wire active energy meter, it adopts micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc.
Availability:
Inquire Add to Basket

  • Yuanky

  • America

Specification
 DDS5558L
 DDS5558R
Accuracy
 Active
                                                       Class1.0
Reactive
                                                             /
Voltage
 Rated
                                             110/120/220/230/240V
Range
                                                   0.9Un~1.1Un
Limit
                                                   0.8Un~1.2Un
Frequency
                                                       50/60Hz
Current
 Range
                     1.5(6), 5(30), 10(50), 15(90), 20(100), 5(40), 5(100)A
Starting Current
                                                        0.4%lb
Constant
 Active
                                      800 imp/kWh ,1600imp/kWh
Reactive
                                                             /
Display
 Type
                          LCD
                       Register
Digit
                                                        6+1

Power

Consumption

 Voltage Circuit
                                                  ≤0.8W,10VA
Current Circuit
                                                        ≤4VA
Communication
 Interface
                                 Optical/Infrared/RS485 (Optional)
Protocol
                                        MODBUS,DLT/645,IEC1107
Temperature
 Working Temperature
                                                    -45°C~+55°℃
Storage Temperature
                                                    -40°C~+70°C
Humidity
                                                         <90%
Protection
                                                          IP54


Watt Hour Meter Electronic Din-rail Active Energy Meter Active Energy Meter
