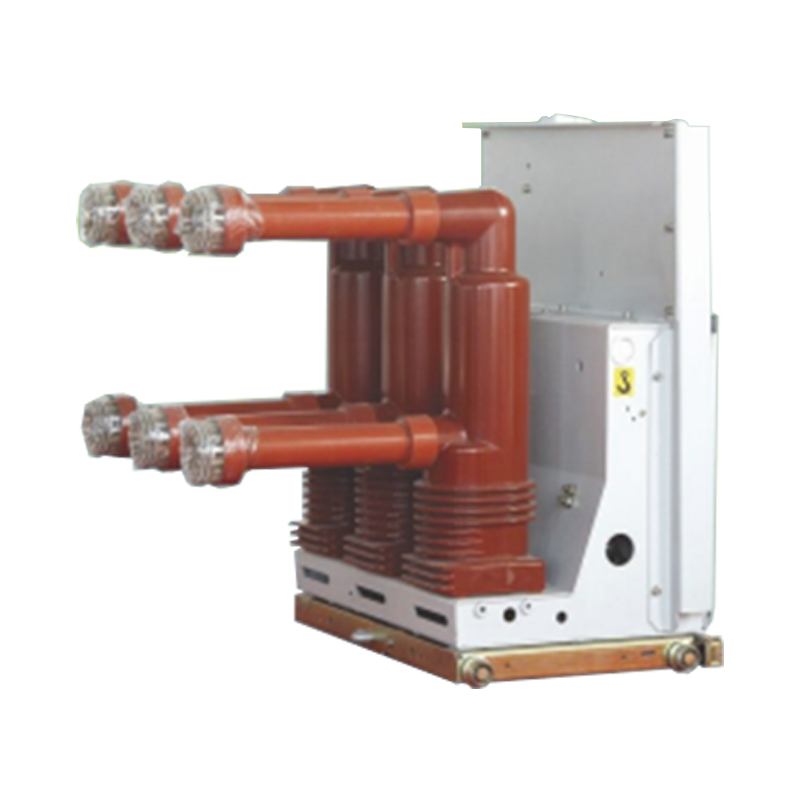

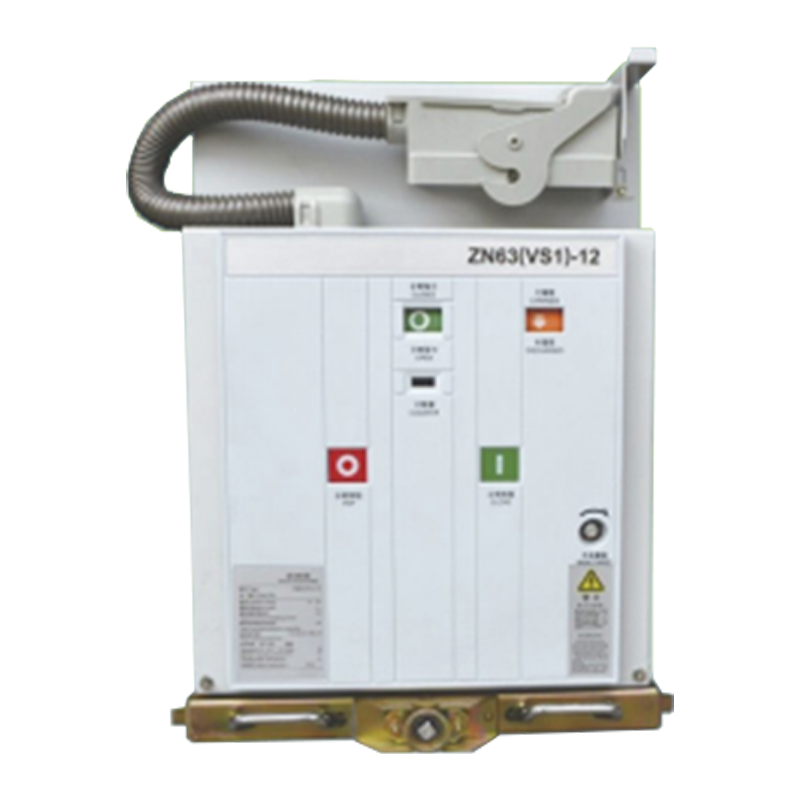

ZN63[VS1]~24KV Series Indoor Solid Sealed Vacuum Circuit Breaker

ZN63-24 series vacuum circuit breaker is a new type of circuit breaker independently developed by Hearkou Electric Power. The use of solid seal pole structure, can also be used insulation simple structure. 2N63-24 series Naoyasuo road gold is a three-intersecting source 60-60H2 set pressure of 24KV indoor and closed installation pipe, as a power grid equipment, power equipment and control unit. The primary part of the solid column circuit breaker adopts the APG process to protect the vacuum interrupter and other main circuits from the impact of push, dust and condensation, which is suitable for frequent operations requiring rated working current, or places where the short-circuit current is broken multiple times, and is also used in places with harsh environmental conditions. ZN63-24 real circuit breaker through various forms of tests, according to the latest national standard M2 level 20000 machine life type test, according to E2 level 274 short circuit current to complete the circuit breaker electrical life type test, can ensure safe operation under normal conditions of use. Factory inspection: mechanism characteristic test, main circuit power frequency voltage test, control circuit insulation test, main circuit resistance test, interlock operation test, mechanical and electrical operation test.

Availability:



Inquire Add to Basket

Brand:
Yuanky
Intercontinental Product:
America

Product Description

序景	00 ltem		00 Unit	00 Data
				20KA		25KA	31.5KA
1	额定电压 Rated voltage		KV	12
2	最高工作电压 Maximum working voltage		KV	12
3	额定电流 Rated Current		A	630~1250		630~1600	630~1600
4	额定短路开断电流 Rated short circuit breaking current		KA	20		25	31.5
5	额定短路关合电流 Rated short-circuit switching current		KA	50		63	80
6	额定峰值耐受电流 Rated peak withstand current		KA	50		63	80
7	4S额定短路耐受电流 4S rated short-circuit withstand current		KA	20		25	31.5
8	额定绝缘水平 Rated insulation level	工频耐压(额定开断前后) Power frequency voltage(rated breaking befor	KV		42(fracture 48)
		冲击耐压(额定开断前后) Impulse withstand voltage(rated breaking before and after		75(fracture 85)
9	额定操作顺序 Rated operating sequence			分 - 0 . 3S - CO - 180S - CO 0-0.3S-CO-180S-CO
10	机械寿命 Mechanical life		Times	10000
11	额定短路开断电流开断次数 Rated short-circuit current breaking times		Times	50
12	操作机构额定合闸电压(直流) Rated Operating Mechanism Closing Voltage(DC)		V	AC、DC 110、220
13	操作机构额定分闸电压(直流) Rated Operating Mechanism Opening Voltage(DC)		V	AC、DC110、220
14	触头开距 Contact opening distance		mm	11±1
15	超行程(触头弹簧压缩长度) Overtravel(the length of contact spring compression)		mm	3.5±0.5
16	三相分、合闸弹跳时间 Closing/Opening Time Difference Among Three Phase		ms	≤2
17	触头合闸弹跳时间 Contact closing bounce time		ms	≤2
18	平均分闸速度 Averageopening speed		m/s	0.9-1.2
19	平均合闸速度 Average closing speed		m/s	0.5-0.8
20	分闸时间 Tripping Time	最高操作电压下 Maximum operating voltage	s	≤0.05
		最低操作电压下 Minimum operating voltage		≤0.08
21	合闸时间 Closing time		s	0.1
22	各相主回路电阻 The main circuit resistance of each phase			630≤501250≤451600≤40
23	动静触头允许磨损累积厚度 Allowed Consumpted Thickness of Contacts		mm	3
