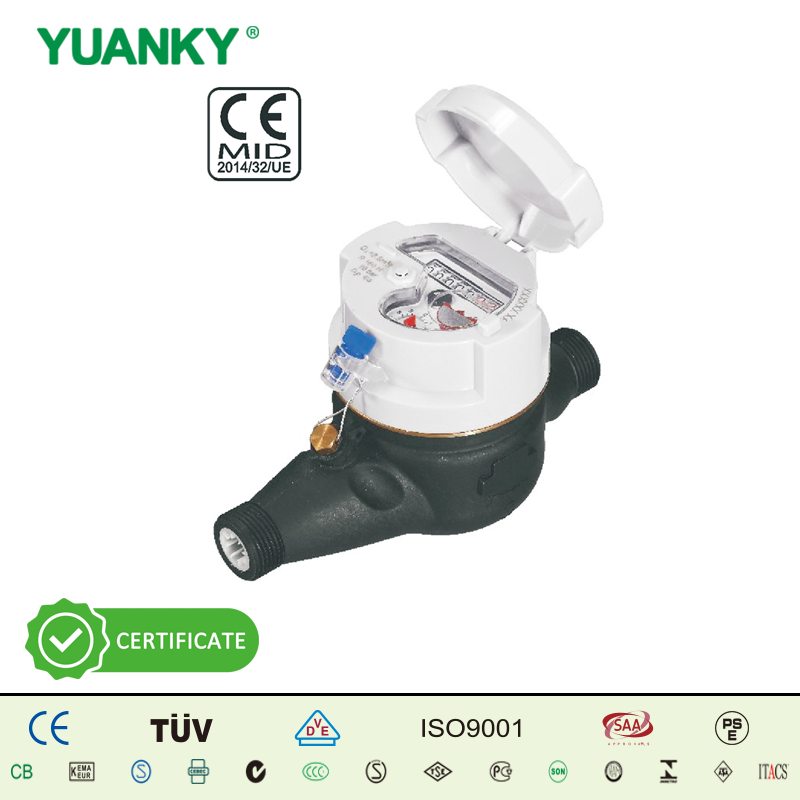

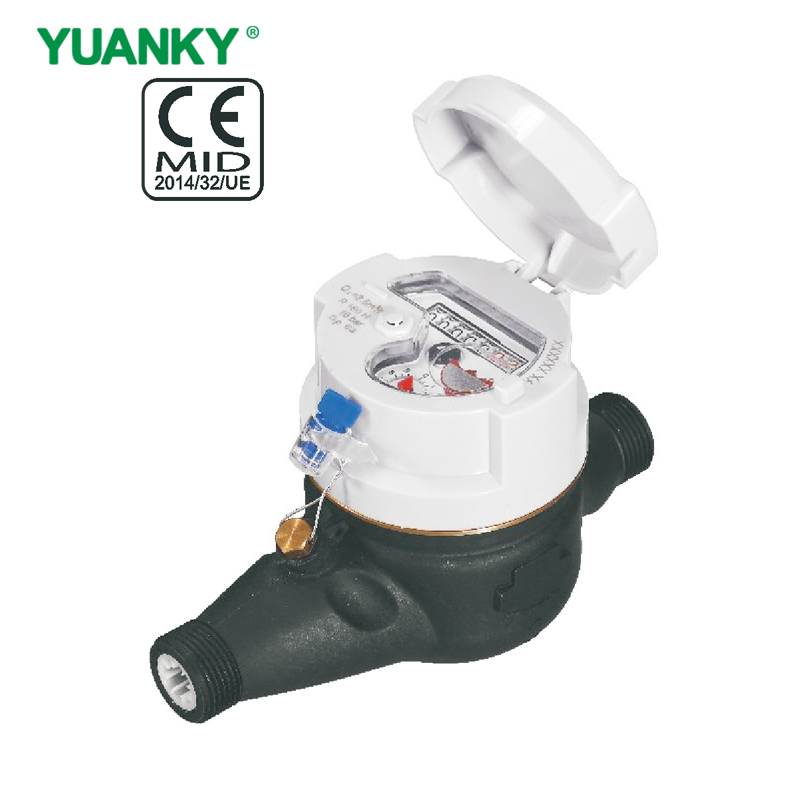

HWSG‑xxE5/S/RLN1 (DN15‑DN20)
YUANKY
America, Europe, Britain, Australia, Southeast Asia, Philippines, I, Africa, French, Arabic, German
Product Features

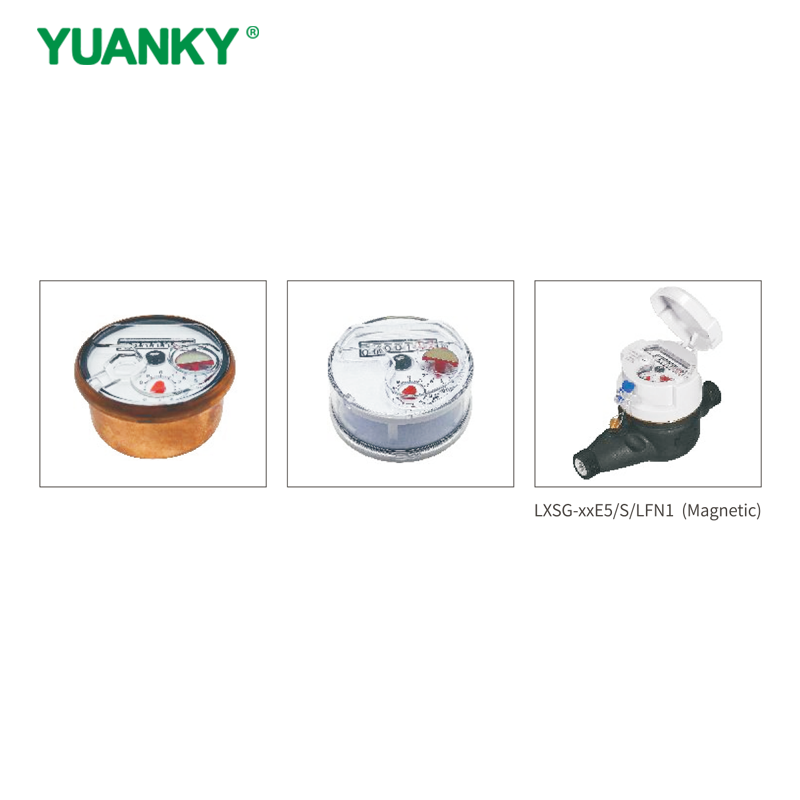

YUANKY multi jet dry type water meter has plastic body, fitted with vacuum‑sealed dry dial register to maintain clean reading for a long time, it uses magnetic drive with anti‑magnetic protection and external regulating device, multiple length and connection options are available upon request, non‑return valve, pulse output of 1L/Pulse or 10L/Pulse, copper can register and plastic can register are optional, it is pre‑equipped for inductive remote reading modules, fits cold water with temperature ≤30℃ and working pressure ≤1.6MPa(16bar), maximum permissible error reaches ±5% in lower zone and ±2% in upper zone.
Technical parameters
| 15 | 20 | ||
|---|---|---|---|
| (DN)[mm] | 15 | 20 | |
| Size [inch] | 1/2" | 3/4" | |
| (Q4)[m³/h] | 3.125 | 5 | |
| (Q3)[m³/h] | 2.5 | 4 | |
| R80 | (Q2)[l/h] | 50 | 80 |
| (Q1)[l/h] | 31.25 | 50 | |
| R100 | (Q2)[l/h] | 40 | 64 |
| (Q1)[l/h] | 25 | 40 | |
| R125 | (Q2)[l/h] | 32 | 51.2 |
| (Q1)[l/h] | 20 | 32 | |
| R160 | (Q2)[l/h] | 25 | 40 |
| (Q1)[l/h] | 15.62 | 25 | |
| Indicating range [m³] | 99 999 | 99 999 | |
| Resolution of the indicating device [m³] | 0.00005 or 0.00002 | 0.00005 or 0.00002 | |
| Temperature class | T30 and T50 | T30 and T50 | |
| Water pressure classes | MAP 16 | MAP 16 | |
| Pressure‑loss classes | △p63 | △p63 |
