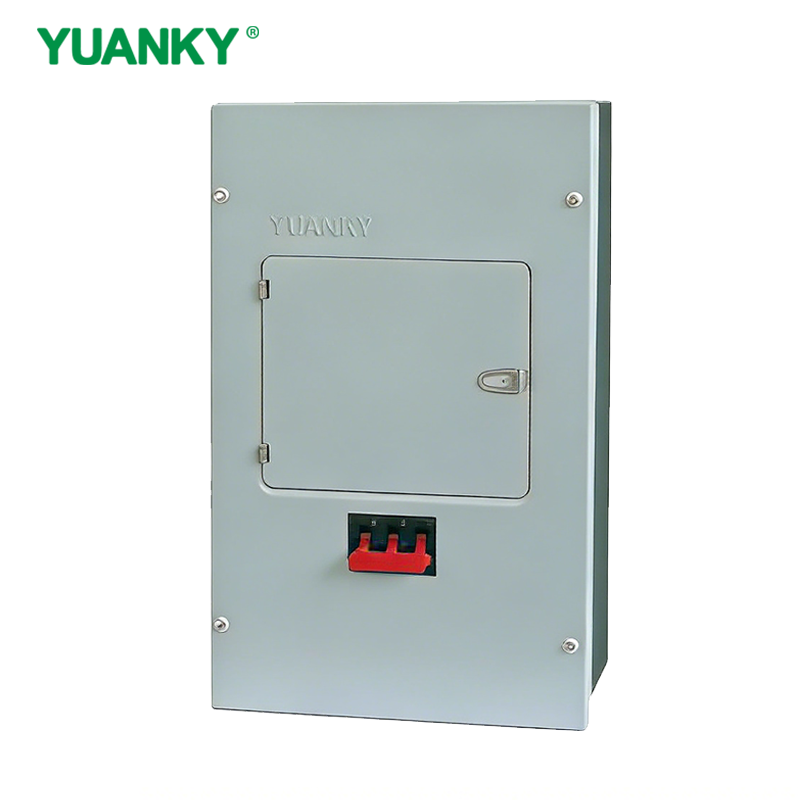

CTB Series Distribution Board Type C

Availability:
Inquire Add to Basket

  • CTB

  • YUANKY

  • America

Three Phase

Without Hinged Protective Cover (100A)

Mounting

Type

MCB ways

Box Assembly List NO

+

Front Plate List No.

=

Consumer  Unit List No.

Surface

4

4/4

36/1

154/1

6

6/4

39/1

156/1

8

8/4

37/1

158/1

10

10/4

40/1

160/1

12

12/4

38/1

162/1

Flush

4

4/4

36/1

154/3

6

6/4

39/3

156/3

8

8/4

37/3

158/3

10

10/4

40/3

160/3

12

12/4

38/3

162/3

With 100A Main Swith

Supplies separated box assemblies and front plates to facilitate range flexbility, Exception: -12 way distribution board supplied as complete enclosure.

Mounting

Type

MCB ways

Box Assembly List NO

+

Front Plate List No.

=

Consumer  Unit List No.

Surface

4

4/48

36/18

154/18

6

6/48

39/18

156/18

8

8/48

37/18

158/18

10

10/48

40/18

160/18

12

162/18

Flush

4

4/48

36/38

154/38

6

6/48

39/38

156/38

8

8/48

37/38

158/38

10

10/48

40/38

160/38


Distribution Board Type C Plastic Distribution Box
