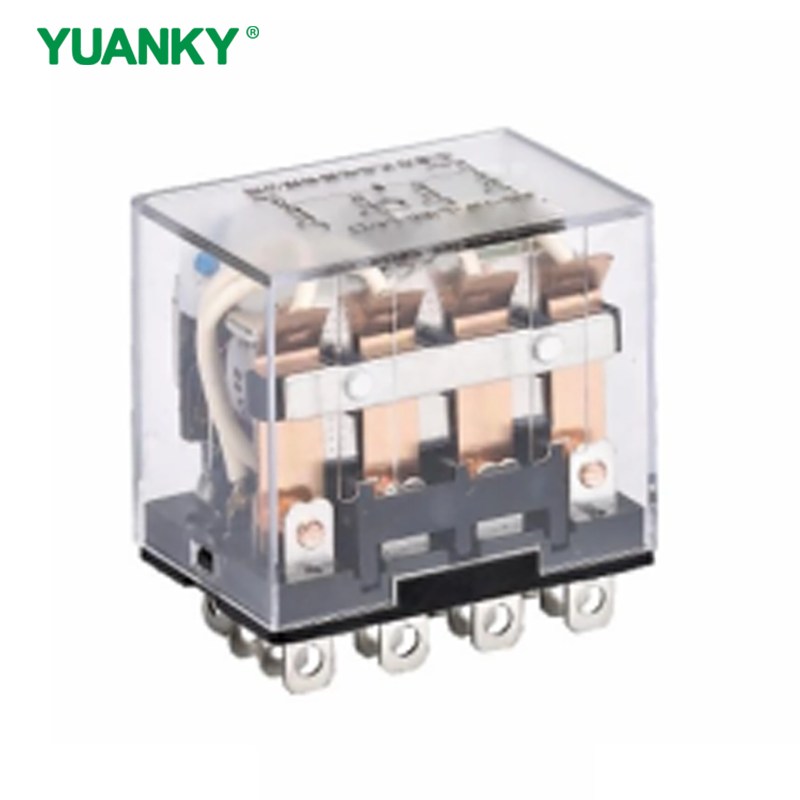

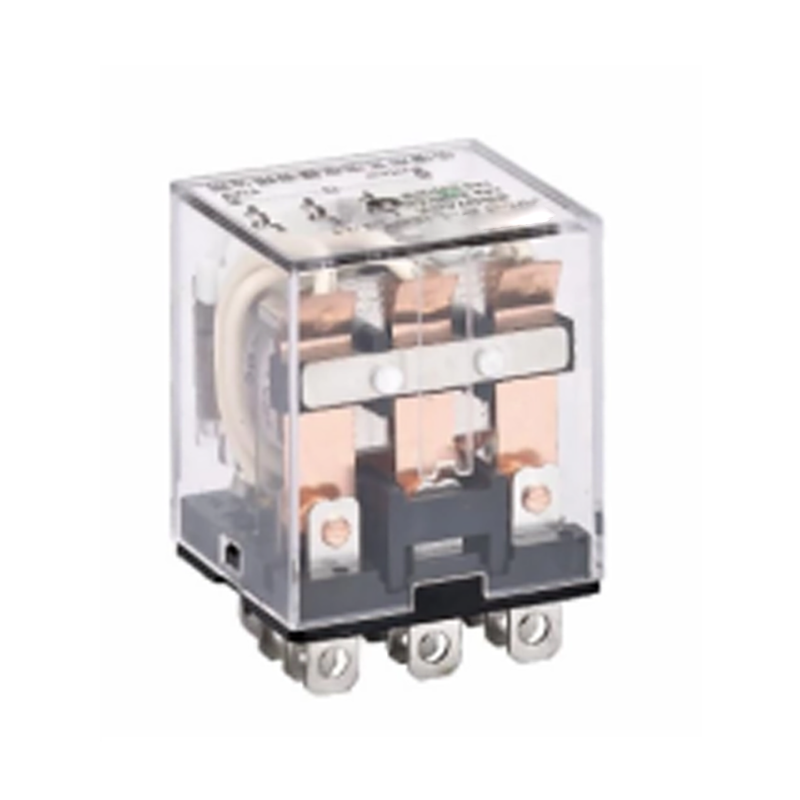

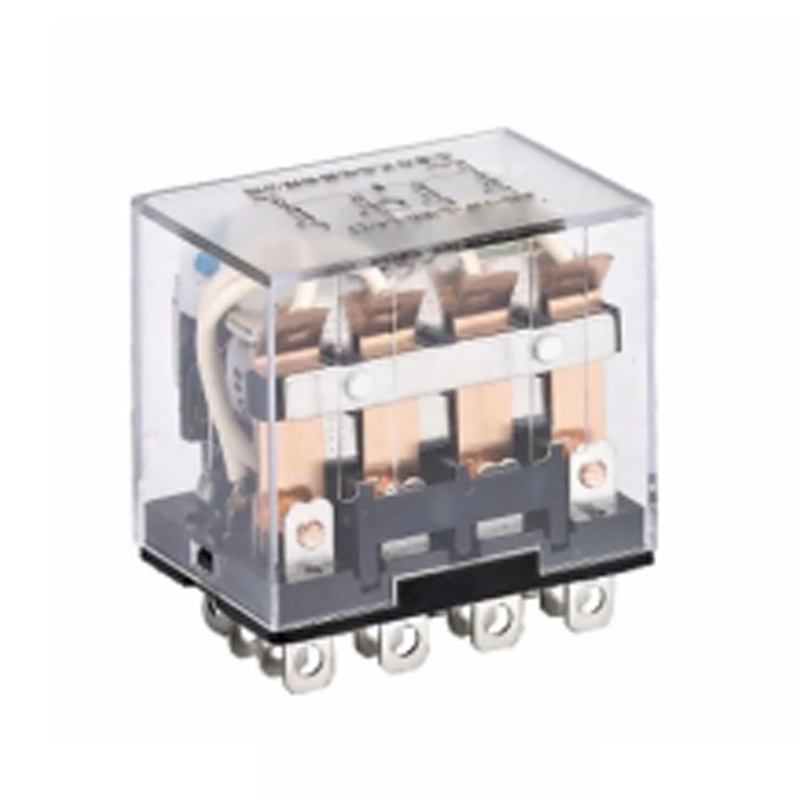

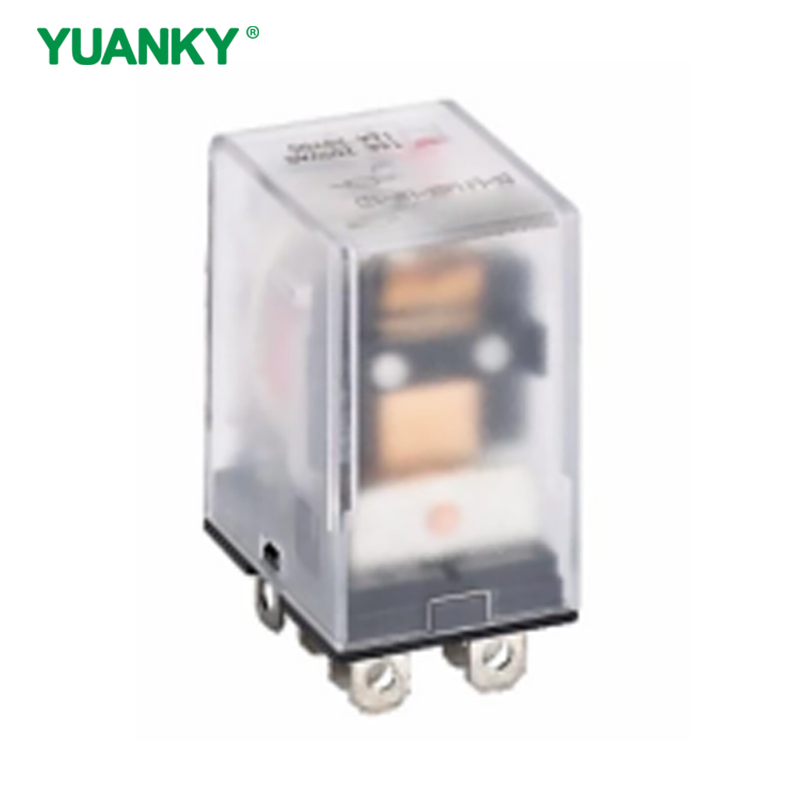

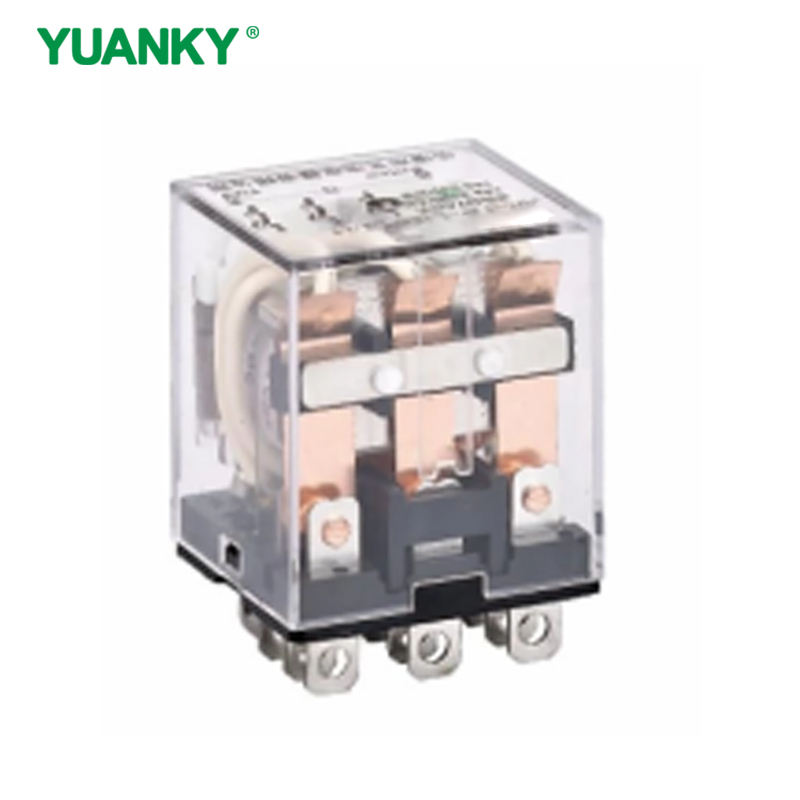

HW-L1CL、HW-L3CL、HW-L4CL Electromagnetic Relay

Share to:

HW-L1CL、HW-L3CL、HW-L4CL Electromagnetic Relay

Products have serialization, basic type, improved type, functional type and so on
Working state LED indicator, coil voltage DC with LED optional infinite input
Novel structure, ingenious design, beautiful appearance, high electric resistance, with multiple patents
Improved and functional relay cover has a variety of fixed circlip design for mounting

Availability:



Inquire Add to Basket

Intercontinental Product:
America

Product Description

Type and meaning

w17

1、Enterprise Code: Haohui Electronics

2、Serial Number: L etc

3、Number of contact groups: one two,three four

4、A-normally open contact Contact Form: C-conversion type B-normally closed contact

5、mounted type: F:flange mounted type P:PCB mounted type No Letters: plug-in moudted

6、operating state:L:LED indicate No Letters:no indicate

7、auxiliary function :D/CRInhibitory protection

8、Coil Voltage:DCis for direct voltage AC is for alternating voltage

Product performance

Model		HW-L1CL	HW-L3CL	HW-L4CL
Dimension ±0.5mm		27.4 ×21.0×35.4mm	27.3X31X35mm	27.3X41X35mm
Contact Form		1(C、A、B)	3(C、A、B)	4(C、A、B
Contact Material		Silver Alloy
Resistance Performance Of Contactor Capacity		16A 28VDC/240VAC	10A 28VDC/240VAC	10A 28VDC/240VAC
Contact Resistance		≤50mΩ
Coil Powe	AC	1.2VA
	DC	0.9W
Coil Voltage	AC	6～ 380VAC
	DC	6～ 220VDC

Operate time		≤15ms
Release time		≤15ms
Pick -up Voltage		DC:≤75%、AC:≤80%
Drop-out Voltage		DC:210%AC:230%
Max Voltage		110%
Dielectric Strength	Between Open Contacts	1000VAC/1min		(Leakage current1mA)
	Contacs Pieces	1200VAC/1min (Leakage current1mA)
	Between Coil&Contacts	1500VAC/1min (Leakage current1mA
lnsulation Resistance(MΩ		≥500MΩ(500VDC
Service Life	Electrical	21x 10⁵(1800Ops/h
	Mechanical	≥1×10⁷(18000 Ops/h )
Ambient Temperature(℃)		-25～ +55℃
Humidity		35%～85%RH
Atmospheric Pressure		86～ 106KPa
Shock resistance		10G(Sine half wave pulse;11ms)
Vibration resistance		10~55Hz Double amplitude:1.0mm
Terminal Type		Insert Type
Protection Type		Close Type
Suitable Socket		PTF08A	PTF11A		PTF14A
Product Weight(g)		around 35g	around 50g		around 65g
Same Reference		LY1	LY3		LY4

External dimensions (mm)

w18

External dimensions (mm)

w19

Wiring diagram

w20
